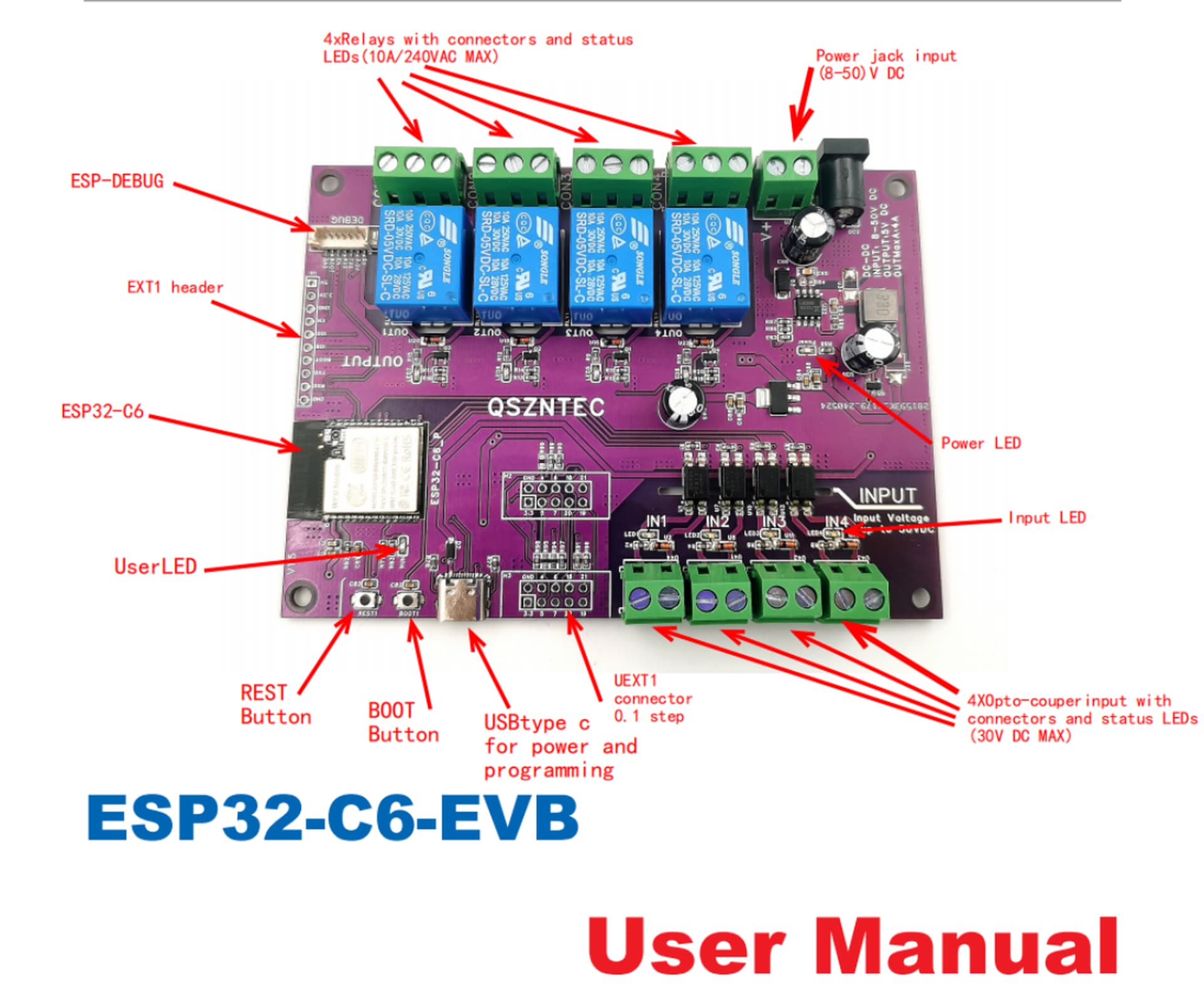

Specifiche: https://wiki.icbbuy.com/doku.php?id=developmentboard:esp32-c6-evb
esphome:
min_version: "2025.4"
name: esp32-c6-evb
friendly_name: ESP32 C6 EVB
project:
name: mfornander.esp32c6evb
version: "1.0"
esp32:
board: esp32-c6-devkitc-1
variant: esp32c6
flash_size: 4MB
framework:
type: esp-idf
version: 5.3.1
platform_version: 6.9.0
sdkconfig_options:
CONFIG_ESPTOOLPY_FLASHSIZE_4MB: y
CONFIG_BT_BLE_50_FEATURES_SUPPORTED: y
CONFIG_BT_BLE_42_FEATURES_SUPPORTED: y
CONFIG_OPENTHREAD_ENABLED: n
CONFIG_ENABLE_WIFI_STATION: y
CONFIG_USE_MINIMAL_MDNS: y
# Enable logging
logger:
# Enable Home Assistant API
api:
password: ""
ota:
- platform: esphome
password: ""
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "ESP32-C6-EVB Fallback Hotspot"
password: "12345678"
captive_portal:
# https://wiki.icbbuy.com/doku.php?id=developmentboard:esp32-c6-evb
esp32_ble_tracker:
id: ble_tracker
max_connections: 5
scan_parameters:
interval: 1100ms
window: 1100ms
active: true
continuous: false
bluetooth_proxy:
active: true
connection_slots: 5
sensor:
- platform: wifi_signal
name: Wi-Fi Signal
update_interval: 60s
# I2C crashes with the esp-idf version needed for BT but only exposed on the UEXT pins anyway
# i2c:
# sda: 6
# scl: 7
# frequency: 15kHz
light:
- platform: status_led
name: Status LED
id: led
pin:
number: 8
inverted: true
ignore_strapping_warning: true
mode: output
binary_sensor:
- platform: gpio
name: BOOT Button
id: boot
pin:
number: 9
inverted: true
ignore_strapping_warning: true
mode:
input: true
pullup: true
- platform: gpio
name: Input 1
id: in1
pin:
number: 1
inverted: true
mode:
input: true
pullup: true
- platform: gpio
name: Input 2
id: in2
pin:
number: 2
inverted: true
mode:
input: true
pullup: true
- platform: gpio
name: Input 3
id: in3
pin:
number: 3
inverted: true
mode:
input: true
pullup: true
- platform: gpio
name: Input 4
id: in4
pin:
number: 4
inverted: true
mode:
input: true
pullup: true
switch:
- platform: restart
name: Restart
- platform: gpio
name: Relay 1
id: out1
pin: 10
- platform: gpio
name: Relay 2
id: out2
pin: 11
- platform: gpio
name: Relay 3
id: out3
pin: 22
- platform: gpio
name: Relay 4
id: out4
pin: 23
FILE .c COMPILATO PER ZIGBEE CON 4 RELE DI PILOTAGGIO
/*
* Zigbee HA_on_off_switch - 4 relè su ESP32-C6-EVB iCBbuy
* Espone 4 endpoint Zigbee On/Off, uno per ciascun GPIO relè
*/
#include "esp_check.h"
#include "esp_err.h"
#include "string.h"
#include "nvs_flash.h"
#include "esp_log.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "ha/esp_zigbee_ha_standard.h"
#include "esp_zb_switch.h"
#define SWITCH_ENDPOINTS_NUM 4
static const uint8_t endpoint_list[SWITCH_ENDPOINTS_NUM] = {10, 11, 12, 13};
static const gpio_num_t relay_gpio_list[SWITCH_ENDPOINTS_NUM] = {
GPIO_NUM_10, GPIO_NUM_11, GPIO_NUM_22, GPIO_NUM_23
};
static const char *TAG = "ESP_ZB_MULTI_RELAY";
void esp_zb_app_signal_handler(esp_zb_app_signal_t *signal_struct)
{
uint32_t *p_sg_p = signal_struct->p_app_signal;
esp_err_t err_status = signal_struct->esp_err_status;
esp_zb_app_signal_type_t sig_type = *p_sg_p;
switch (sig_type) {
case ESP_ZB_ZDO_SIGNAL_SKIP_STARTUP:
ESP_LOGI(TAG, "Initialize Zigbee stack");
esp_zb_bdb_start_top_level_commissioning(ESP_ZB_BDB_MODE_INITIALIZATION);
break;
case ESP_ZB_BDB_SIGNAL_DEVICE_FIRST_START:
case ESP_ZB_BDB_SIGNAL_DEVICE_REBOOT:
if (err_status == ESP_OK) {
ESP_LOGI(TAG, "Device startup complete (%s)", esp_zb_bdb_is_factory_new() ? "factory new" : "reboot");
if (esp_zb_bdb_is_factory_new()) {
ESP_LOGI(TAG, "Starting network formation");
esp_zb_bdb_start_top_level_commissioning(ESP_ZB_BDB_MODE_NETWORK_FORMATION);
} else {
ESP_LOGI(TAG, "Opening network for joining");
esp_zb_bdb_open_network(180);
}
} else {
ESP_LOGW(TAG, "Startup failed: %s", esp_err_to_name(err_status));
esp_zb_scheduler_alarm((esp_zb_callback_t)esp_zb_bdb_start_top_level_commissioning,
ESP_ZB_BDB_MODE_INITIALIZATION, 1000);
}
break;
case ESP_ZB_NWK_SIGNAL_PERMIT_JOIN_STATUS:
if (err_status == ESP_OK) {
bool join_enabled = *(uint8_t *)esp_zb_app_signal_get_params(p_sg_p);
ESP_LOGI(TAG, "Joining %s", join_enabled ? "enabled" : "disabled");
}
break;
default:
ESP_LOGI(TAG, "Signal received: %s (0x%x), status: %s",
esp_zb_zdo_signal_to_string(sig_type), sig_type,
esp_err_to_name(err_status));
break;
}
}
static void esp_zb_task(void *pvParameters)
{
esp_zb_cfg_t zb_nwk_cfg = ESP_ZB_ZC_CONFIG();
esp_zb_init(&zb_nwk_cfg);
esp_zb_ep_list_t *device_ep_list = NULL;
for (int i = 0; i < SWITCH_ENDPOINTS_NUM; i++) {
esp_zb_on_off_switch_cfg_t switch_cfg = ESP_ZB_DEFAULT_ON_OFF_SWITCH_CONFIG();
switch_cfg.power_on_gpio.pin = relay_gpio_list[i];
esp_zb_ep_list_t *ep = esp_zb_on_off_switch_ep_create(endpoint_list[i], &switch_cfg);
zcl_basic_manufacturer_info_t info = {
.manufacturer_name = ESP_MANUFACTURER_NAME,
.model_identifier = ESP_MODEL_IDENTIFIER,
};
esp_zcl_utility_add_ep_basic_manufacturer_info(ep, endpoint_list[i], &info);
if (device_ep_list == NULL) {
device_ep_list = ep;
} else {
esp_zb_ep_list_add(device_ep_list, ep);
}
}
esp_zb_device_register(device_ep_list);
esp_zb_set_primary_network_channel_set(ESP_ZB_PRIMARY_CHANNEL_MASK);
ESP_ERROR_CHECK(esp_zb_start(false));
esp_zb_stack_main_loop();
}
void app_main(void)
{
esp_zb_platform_config_t config = {
.radio_config = ESP_ZB_DEFAULT_RADIO_CONFIG(),
.host_config = ESP_ZB_DEFAULT_HOST_CONFIG(),
};
ESP_ERROR_CHECK(nvs_flash_init());
ESP_ERROR_CHECK(esp_zb_platform_config(&config));
xTaskCreate(esp_zb_task, "Zigbee_main", 4096, NULL, 5, NULL);
}
